Product introduction:
The equipment consists of a beam, a column, a base, a tank grinding head, a head grinding head, a tank rolling table, a head rolling table, a control cabinet and the like. Suitable for tank with diameter 1000mm-5000mm dished end with diameter 1000mm-5000mm, inside and outside polishing. Tank vertical placement height2500mm. Optional workpiece turntable load range: 1-20 tons
Product parameter:
1. Input total power is 12Kw
2. Equipment dimensions: 6000 x 800 (base embedded) x 5000 (L x W x H, in: mm)
3. Standard equipped with 5 tons of workpiece turntable, larae beam up and down, small beam up and downoeam eft and right. workpiece rotation. frecuency control a total of four inverters. beam efective stroke maximum5000mm
4. The grinding head motor is 5.5kw. Grinding head, belt, thousand impeller, hemp wheel, cloth wheel areinterchangeable
5. Thousand impeller specification: 250mm x 50mm, abrasive belt specification: 2540mm x 50mm6. Machining accuracy: surface roughness Ra<0.4um7. Production efficiency: 10 m2 / h

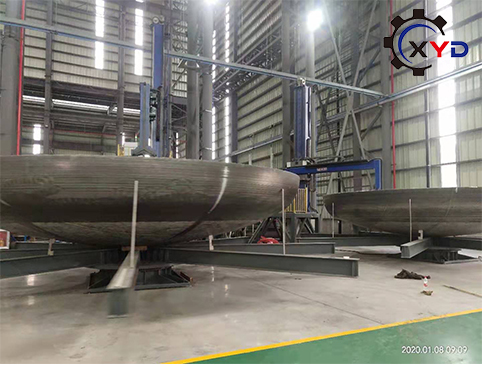

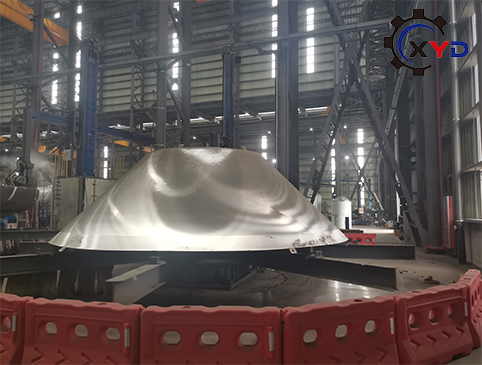

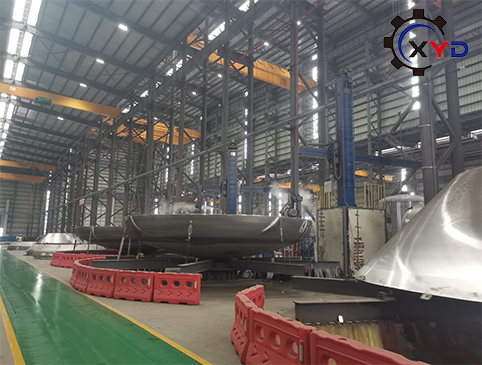

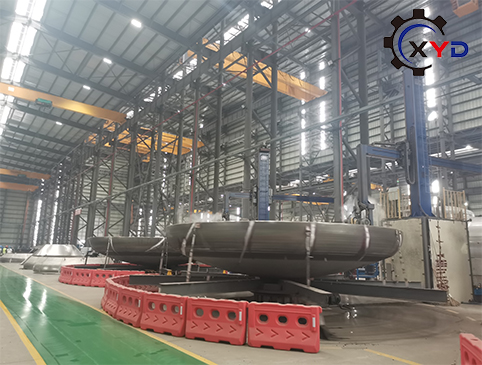

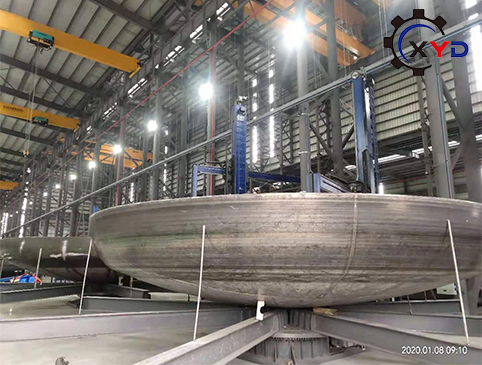

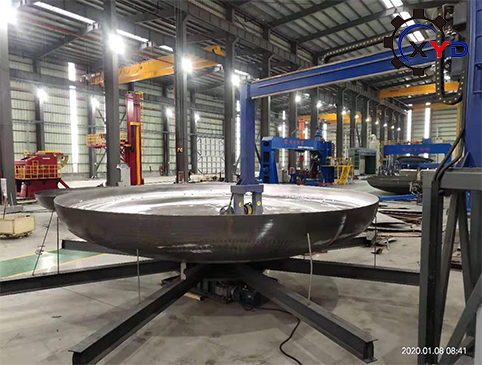

This CNC polishing machine for tank shell and dished head full automatic
diameter:400-6000mm
height:6000mm
it can polish tank in vertical way to 3000mm height
CNC polishing machine for tank shell and dished head
full automatic
diameter:400-6000mm
height:9000mm
it can polish tank in vertical way to 3000mm height
